Products

Oil-immersed transformer

220kV three-phase oil-immersed power transformers

Overview

The company 220 kv transformer, the use of the French areva analysis software and the company special computer and validation procedures, for transformer core, coil, machine body, lead, tank etc all-round optimization design and verification, to ensure that product performance. Superior technology and equipment, the careful material selection and efficient production, makeds the transformer has small volume, light weight, low loss, low partial discharge, low noise characteristics, the product quality is superior, energy conservation and environmental protection, easy installtion and maintenance, reliable operation and stable, reliable, economic and environmental characteristics, suitable for power plants, substations, large industrial and mining petrochemical enterprise, etc.

Execution standard

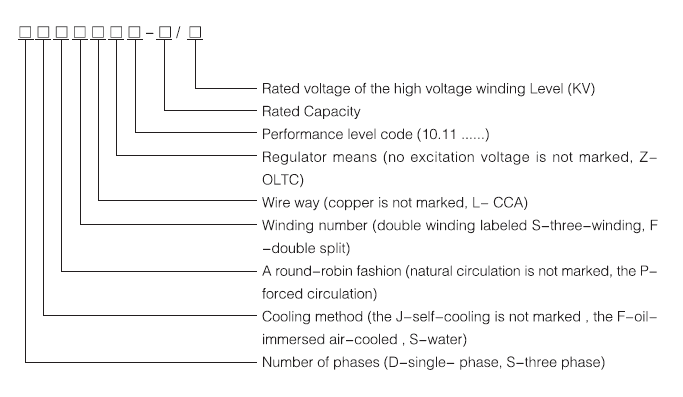

Model
Performance
Parameters
Appearance

- 1GB1094、1～2-1996 power transformers
- 2GB1094、3、5-2003 power transformers
- 3GB6451-2008 three-phase oil-immersed power transformers technical parameters and needs
Performance characteristics
- Low loss: no-load loss than the national standard GB6454-1999 fell by 40% or so, load loss than the national standard GB6451-1999 down 15%;
- Low noise: noise level to reach 60 db below, than the national standards generally drop nearly 20 db. Users have special requirements, but also special design and manufacture (55 db below), satisfy the our country city residents power supply and demand;
- Beautiful shape: the tank bending corrugated structure, shot-blasting, powder electric spray paint, wide blade plate radiator, swimming do not fade.
- Low bureau put: 220 kv all the product process are clean homework, implement body internal metal parts, insulating parts all round turn, bureau in 70 PC y109.52 to control the following;
- Anti-short circuit ability: the company to design and manufacture of SFP10-200000/220 transformer already through national transformer for quality supervision and inspection center short circuit capacity test.
- No leakage: all seal seam allowance limit, upper and lower box along the double sealing, sealers import. Promise never leakage.

SFP10/220 kVthree-phase double winding no excitation voltage powertransformer technology parameters
Rate volume (kVA)	Rated voltage (kV)		Vector group	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)
Rate volume (kVA)	High voltage (kV)	Low voltage (kV)	Vector group	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)
31500	220±2×2.5% 242±2×2.5%	6.3	YNd11	26	128	0.3	12-14
40000		6.6		31	149
50000		10.5		36	178
63000		11		41	208	0.2
75000		10.5		47	237
90000		11		50	272
120000		11 13.8 15.75 18 20		61	327
150000				83	380
160000				85	400	0.15
180000				90	436
240000				105	520
300000		15.75		140	620
360000		18		160	700
370000		20		168	720
400000				180	770
420000				185	800

SFPS10/220kV low pressure 66kV level three-phase double-winding non-excitation regulator power transformers technical parameters
Rate volume (kVA)	Rated voltage (kV)		Vector group	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)
Rate volume (kVA)	High voltage (kV)	Low voltage (kV)	Vector group	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)
31500	220±2×2.5% 242±2×2.5%	63 66 69	YNd11	29	143	0.3	12-14
40000				34	167
50000				40	200
63000				47	234	0.2
90000				55	305
120000				70	365
150000				85	428
180000				90	485	0.15
240000				110	600	0.15

SFZ10/220kV three-phase , two-winding OLTC power transformer technical parameters
Rate volume (kVA)	Rated voltage (kV)		Vector group	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)
Rate volume (kVA)	High voltage (kV)	Low voltage (kV)	Vector group	No-load loss (kW)	On-load loss (kW)	Excit. Curr. (%)	Impedance (%)
31500	220±8×1.25%	6.3、6.6 10.5、11 35、37 38.5	YNd11	25	128	0.3	12-14
40000				32	148
50000				35	179
63000				45	208	0.2
90000		10.5、11 35、37 38.5		55	272
120000				69	327
150000				80	383
180000				90	442	0.15
120000		66 69		70	327	0.2
150000				85	388	0.2
180000				95	450	0.15

OSSFP10/220kV three-phase three-winding excitation voltage auto power transformers technical parameters
Rated volume (kVA)	Rated voltage (kV)			Vector group	Step-up combination		Step-down combination		No-load current (%)	Short-circult impedance (%)
Rated volume (kVA)	High voltage (kV)	Medium pressure (kV)	Lo voltage (kV)	Vector group	No-load loss	On-load loss	No-load loss	On-load loss	No-load current (%)	Step-up	Step-down
31500	220±2×2.5% 242±2×2.5%	115 121	6.6 10.5 11 35 37 38.5	YNa0d11	19	111	17	94	0.3	HV-MV 12-14 HV-LV 8-12 MV-LV 14-18	HV-MV 8-10 HV-LV 28-34 MV-LV 18-24
40000					22	136	20	114
50000					26	161	23	136
63000					30	190	27	162	0.2
90000					38	255	34	221
120000			10.5、11 13.8、 15.75 18、35 37、38.5		47	321	42	272
150000					55	383	49	323
180000					62	438	56	366	0.15
240000					74	563	67	476	0.15

SSFP10/220kV three-phase three-winding excitation voltage power transformers technical parameters
Rated volume (kVA)	Rated voltage			Vector group	No-load loss (kW)	On-load loss (kW)	No-load current (%)	Short-circult impedance (%)
Rated volume (kVA)	High voltage (kV)	Medium pressure (kV)	Low voltage (kV)	Vector group	No-load loss (kW)	On-load loss (kW)	No-load current (%)	Step-up	Step-down
31500	220±2×2.5% 242±2×2.5%	69 125 121	6.3 6.6 10.5 11 35 37 38.5	YNyn0d11	30	153	0.3	HV-MV 22-24 HV-LV 12-14 MV-LV 7-9	HV-MV 12-14 HV-LV 22-24 MV-LV 7-9
40000					36	178
50000					42	212
63000					46	238	0.2
90000			10.5、11 13.8、35 37、36.5		55	322
120000			10.5、11 13.8、35 37、36.5		69	408
150000			11 13.8 15.75 35 37 38.5		80	465
180000					90	500	0.15
240000					120	630
300000					140	750

SSFPZ10/220kV three-phase three-winding power transformer load tap technical parameters
Rated volume (kVA)	Rated voltage			Vector group	No-load loss (kW)	On-load loss (kW)	No-load current (%)	Capacity allocation (%)	Short-circult impedance (%)
Rated volume (kVA)	High voltage (kV)	Medium pressure (kV)	Low voltage (kV)	Vector group	No-load loss (kW)	On-load loss (kW)	No-load current (%)	Capacity allocation (%)	Short-circult impedance (%)
31500	220±8×1.25%	69 115 121	6.3、6.6 10.5、11 35、37 38.5	YNyn0d11	32	153	0.3	100/100/100 100/50/100 100/100/50	HV-MV 12-14 HV-LV 22-24 MV-LV 7-9
40000					38	178
50000					45	210
63000					50	241	0.2
90000			10.5 11 13.8 35 37 36.5		59	318
120000					70	410
150000					80	465
180000					90	550	0.15
240000					115	690	0.15

OSSFPZ10/220 kVthree-phase three-winding power transformer OLTC auto technical parameters
Rated volume (kVA)	Rated voltage			Vector group	No-load loss (kW)	On-load loss (kW)	No-load current (%)	Capacity allocation (%)	Short-circult impedance (%)
Rated volume (kVA)	High voltage (kV)	Medium pressure (kV)	Low voltage (kV)	Vector group	No-load loss (kW)	On-load loss (kW)	No-load current (%)	Capacity allocation (%)	Short-circult impedance (%)
31500	220±8×1.25%	115 121	6.3、6.6 10.5、11 35、37 38.5	YNan0d11	20	102	0.3	100/100/50	HV-MV 8-10 HV-LV 28-34 MV-LV 18-24
40000					23	125
50000					27	148
63000					32	178	0.2
90000			10.5 11 35 37 36.5		39	230
120000					45	280
150000					52	322
180000					56	345	0.15
240000					62	450	0.15
